Ancor 131302 White 12/3 AWG Triplex Flat Cable 25 - Marine-Grade Wire

The Ancor 131302 White 12/3 AWG Triplex Flat Cable 25 is a high-quality marine-grade wire designed to meet and exceed the highest UL Boat Cable standards. With its ultra-flexible (Type 3/Class K) stranding, this cable is resistant to fatigue caused by vibration and flexing, ensuring reliable performance even in demanding marine environments.

The outer jacket of this cable is specifically engineered for easy removal and offers exceptional abrasion resistance, providing long-lasting durability. The proprietary premium vinyl insulation used by Ancor remains flexible even in extreme cold temperatures. It is also highly resistant to salt water, battery acid, oil, gasoline, and UV radiation. The insulation is rated at 600 volts, with a maximum temperature rating of 105&degC in dry conditions and 75&degC in wet conditions. Additionally, it offers excellent heat and abrasion resistance, ensuring optimal protection for the wires.

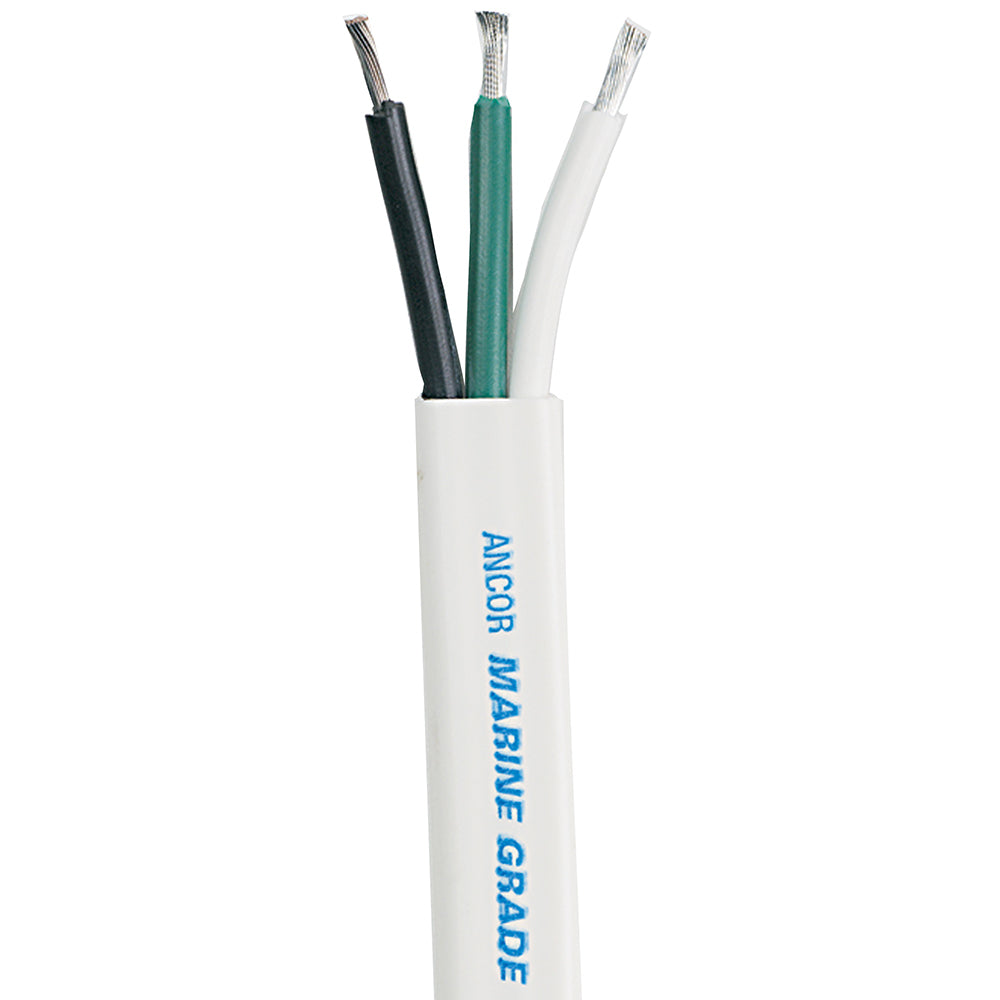

This Ancor Triplex Cable features three primary conductors in white, black, and green color coding, all housed within a white common jacket. The color coding simplifies the identification and installation process, enhancing convenience and efficiency.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to DEHP on Wikipedia.

Features:

• Meets and exceeds UL Boat Cable standards
• Ultra-flexible (Type 3/Class K) stranding to resist fatigue
• Easy removal outer jacket with exceptional abrasion resistance
• Premium vinyl insulation remains flexible in extreme cold
• Resistant to salt water, battery acid, oil, gasoline, and UV radiation
• Rated at 600 volts, 105&degC dry and 75&degC wet
• Excellent heat and abrasion resistance
• Three Marine Grade™ primary conductors (white, black, and green) in a white common jacket

Specifications:

• Product Type: Triplex Flat Cable
• Color: White
• Wire Gauge: 12/3 AWG
• Length: 25 feet
• Stranding: Ultra-flexible (Type 3/Class K)
• Jacket Material: Proprietary premium vinyl insulation
• Voltage Rating: 600 volts
• Temperature Rating: 105&degC dry, 75&degC wet
• Conductor Colors: White, Black, Green

Learn More

• UL (safety organization) on Wikipedia
• Boat Cable on Wikipedia
• Vinyl Insulation on Wikipedia
• Salt Water on Wikipedia
• Battery Acid on Wikipedia
• Oil on Wikipedia
• Gasoline on Wikipedia
• UV Radiation on Wikipedia

Product: Ancor 131302 White 12/3 AWG Triplex Flat Cable 25 - Marine-Grade Wire

Brand: Ancor

Model: 131302

Shipping Weight: 3.05 lb

Shipping Height: 5.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
