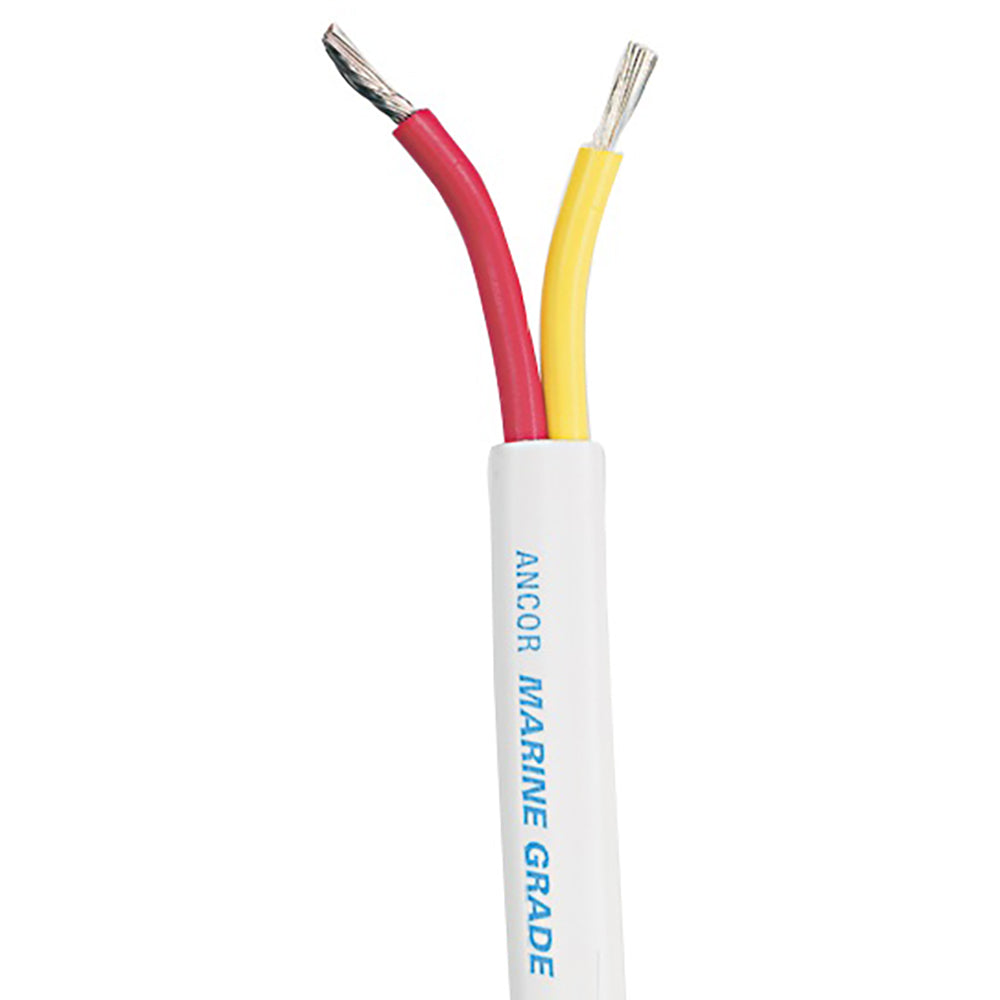

Safety Duplex Cable - Ancor 124950 18/2 AWG - Red/Yellow - Flat - 500'

Ancor 124950 18/2 AWG Safety Duplex Cable is a high-quality marine-grade cable designed for various electrical applications. This cable features red and yellow primary conductors, which are correctly color-coded according to ABYC standards, encased in a white common jacket. The flat design of this cable allows for easy installation and removal, while providing exceptional abrasion resistance.

The Ancor safety duplex cable exceeds UL 1426 standards, ensuring superior performance and reliability. It is constructed using the finest ultra-flexible tinned copper stranding (Type 3/Class K), offering maximum protection against corrosion, electrolysis, and fatigue caused by vibration and flexing. The premium vinyl insulation is rated at 600V, 105&degC dry and 75&degC wet, ensuring optimal electrical conductivity and durability. This cable remains flexible even in extreme cold conditions (-40&degF/C) and exhibits excellent resistance to salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation.

Product Features:

• Red and yellow Marine Grade primary conductors (color-coded to ABYC standards)
• White common jacket for easy removal and high abrasion resistance
• Exceeds UL 1426 standards
• Ultra-flexible tinned copper stranding (Type 3/Class K) for maximum protection against corrosion and electrolysis
• Resistant to fatigue caused by vibration and flexing
• Premium vinyl insulation rated at 600V, 105&degC dry and 75&degC wet
• Remains flexible even in extreme cold (-40&degF/C)
• Resistant to salt water, battery acid, oil, gasoline, heat, abrasion, and ultra-violet radiation

Specifications:

• Product Title: Ancor 124950 18/2 AWG Safety Duplex Cable - Red/Yellow Flat 500ft
• Wire Gauge: 18 AWG
• Number of Conductors: 2
• Conductor Material: Tinned Copper
• Jacket Color: Red/Yellow
• Jacket Material: Premium Vinyl
• Voltage Rating: 600V
• Temperature Rating: 105&degC dry, 75&degC wet
• Cable Length: 500ft

Learn More:

• Electrical Conductor
• UL (safety organization)
• Tinned Copper
• Vinyl Insulation

Product: Ancor 124950 18/2 AWG Safety Duplex Cable - Red/Yellow Flat 500ft

Brand: Ancor

Model: 124950

Shipping Weight: 19.00 lb

Shipping Height: 11.00 in

Shipping Width: 11.00 in

Shipping Length: 11.00 in
