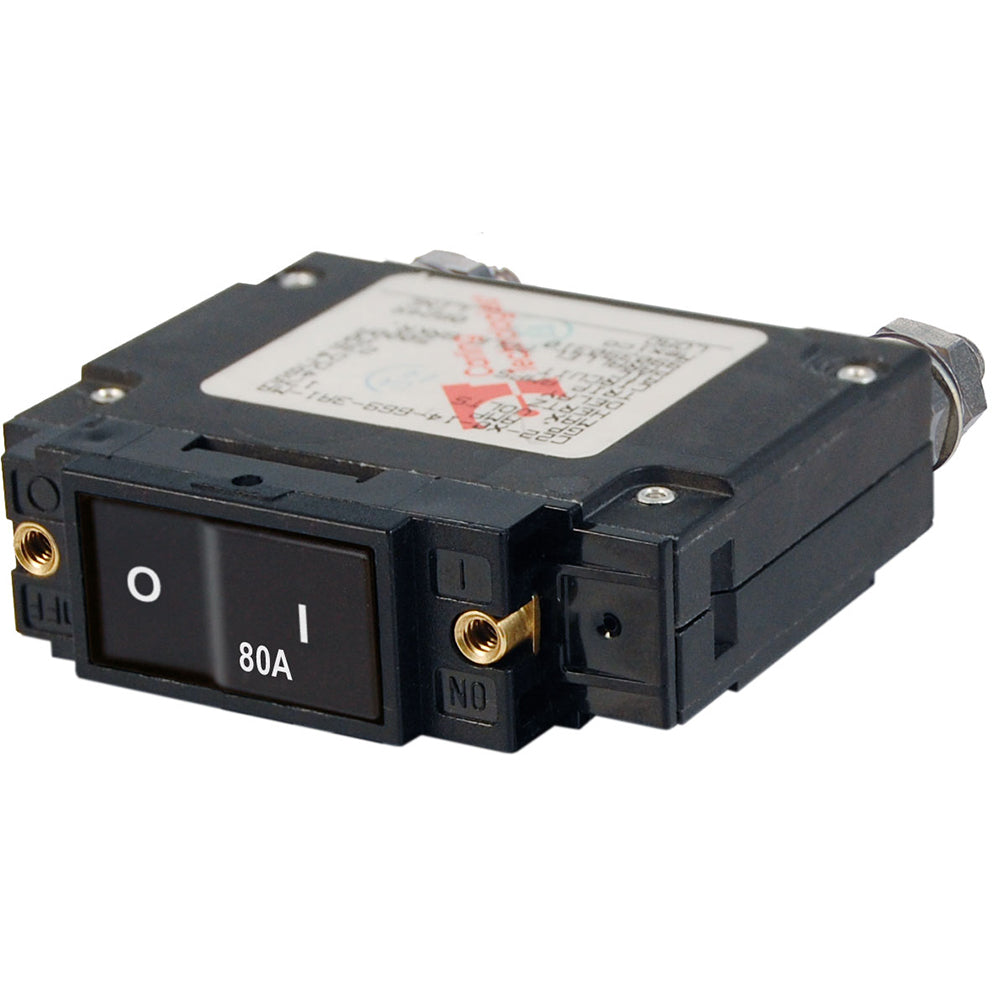

80A Blue Sea 7548 C-Series Single Pole Flat Rocker Circuit Breaker

The 80A Blue Sea 7548 C-Series Single Pole Flat Rocker Circuit Breaker is a high-quality circuit breaker that combines switching and circuit protection into a single device. It is designed to provide overcurrent protection for inverters, bow thrusters, and windlasses. With its "Trip Free" feature, this circuit breaker cannot be held closed after trip, ensuring safety in case of an overload or short circuit. It is also ignition protected, making it safe for installation aboard gasoline powered boats.

The rocker actuator of this circuit breaker is flush in the "ON" position, eliminating the risk of accidental switching. The color actuator indicates the "OFF" position for easy identification. It has an amperage rating of 80A AC / 80A DC and operates at a maximum voltage of 240V AC / 48V DC. The actuator style is a flat rocker, and it has a single pole.

The Blue Sea 7548 C-Series Single Pole Flat Rocker Circuit Breaker is a magnetic hydraulic type, ensuring trip-free operation. It has a terminal stud torque of 35 in-lb (3.95 Nm) and an interrupt capacity of 3000A at 120V AC / 3500A at 240V AC / 5000A at 32V DC. The circuit breaker has a minimum operating temperature of -40&degC and a maximum operating temperature of 85&degC.

Specifications:

• Amperage: 80A AC / 80A DC
• Actuator Style: Flat Rocker
• Poles: 1
• Maximum Voltage: 240V AC / 48V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A at 120V AC / 3500A at 240V AC / 5000A at 32V DC
• Minimum Operating Temperature: -40&degC
• Maximum Operating Temperature: 85&degC
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Switching Cycles: 10000
• Terminal Stud: 1/4-20 Tin-Plated Brass
• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Circuit Breaker - Wikipedia

Product: 80A Blue Sea 7548 C-Series Single Pole Flat Rocker Circuit Breaker

Brand: Blue Sea Systems

Model: 7548

Shipping Weight: 0.40 lb

Shipping Height: 2.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
